Intra-Body Communication (IBC), which modulates ionic currents over the human body as the communication medium, offers a low power and reliable signal transmission method for information exchange across the body. This paper first briefly reviews the quasi-static electromagnetic (EM) field modeling for a galvanic-type IBC human limb operating below 1 MHz and obtains the corresponding transfer function with correction factor using minimum mean square error (MMSE) technique. Then, the IBC channel characteristics are studied through the comparison between theoretical calculations via this transfer function and experimental measurements in both frequency domain and time domain. High pass characteristics are obtained in the channel gain analysis versus different transmission distances. In addition, harmonic distortions are analyzed in both baseband and passband transmissions for square input waves. The experimental results are consistent with the calculation results from the transfer function with correction factor. Furthermore, we also explore both theoretical and simulation results for the bit-error-rate (BER) performance of several common modulation schemes in the IBC system with a carrier frequency of 500 kHz. It is found that the theoretical results are in good agreement with the simulation results.

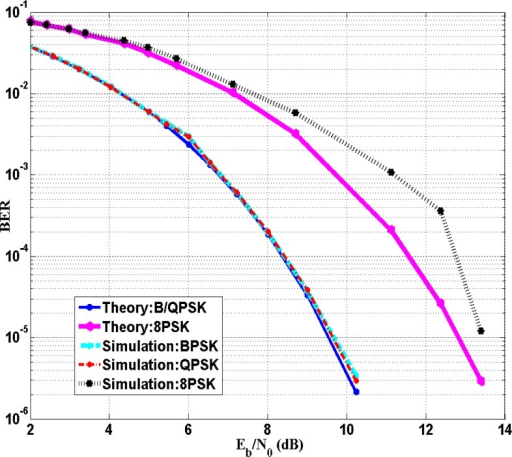

The data symbols are first digitally modulated using BPSK, QPSK or 8PSK and then are pulse-shaped by the square root raised cosine filter with roll-off factor α = 0.5 before sending to the IBC channel. The noise within the human body mainly comes from various bioelectric signals, the environment and contact impedance between the electrodes and the human body. As the frequency ranges of bioelectric signals such as ECG, EMG and EEG signal are all lower than 10 kHz [34], therefore, noise contributed to the passband comes mainly from the contact between electrodes and human body, and other background noises. We assume that the noise is Additive White Gaussian Noise (AWGN) with power spectrum density (PSD) N0. From the measurements without applying input signal, the estimated value of background noise PSD N0 is found to be around −123 dBm/Hz. The transmit power for the transmitter was set to −25 dBm for a compromise between feasible calculation time and bit-error-rate (BER). The communication performance (BER) in simulation and theoretical calculation is compared. In the simulation, the channel characterized by transfer function (7) and AWGN noise with PSD −123 dBm/Hz is built, then a large amount (up to 107 bits) of random bit stream with different bit rate and different modulation scheme is applied into this channel, and output bit-stream (with possible error bits) is obtained at the receiver after demodulation. The BER can be calculated based on the comparison between input and received data bits. In the theoretical calculation, the equivalent signal to noise ratio (i.e., the ratio of average signal energy per bit to noise power spectral density Eb/N0) can be calculated before demodulation at the receiver using the transmit power, the transfer function attenuation, N0 and data symbol rates. The theoretical BER can be calculated by the following equation:(12)BER={Q(2Eb/N0)for BPSK and QPSKQ[sin(π/8)×6Eb/N0]for 8 PSKwhere Q(x) is the Gaussian Q-function. At a transmission distance of 11 cm, Figure 8 shows the BER performances of BPSK, QPSK and 8PSK for the data rates between 6 kbps and 100 kbps and the BER performances versus Eb/N0 are presented in Figure 9. As depicted in Figures 8 and 9, the performance of BPSK and QPSK are similar. The BER is lower than 10−3 when Eb/N0 is higher than 6.5 dB with the maximum bit rate of 70 kbps for both BPSK and QPSK modulation. For 8PSK, BER is lower than 0.01 when Eb/N0 is higher than 7 dB with the bit rate lower than 30 kbps. Among the three modulation methods, 8PSK obtains the highest bandwidth efficiency; while QPSK is twice as high as that of BPSK. However, the 8PSK suffers high BER at the same bit rate. In other words, 8PSK trades bandwidth efficiency off BER while QPSK obtains lowest BER with higher bandwidth efficiency. Thus, considering the bandwidth efficiency and BER, QPSK modulation scheme obtains the highest bit rate with low BER and is the optimal modulation scheme among BPSK, QPSK and 8PSK.
